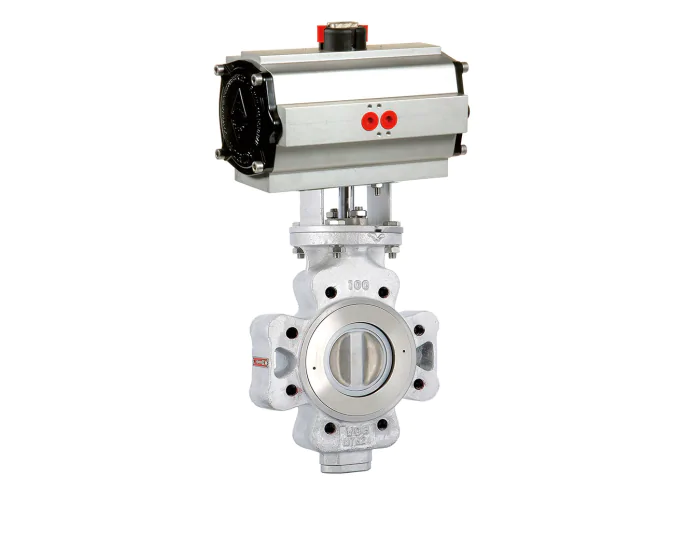

The 1116 series stainless steel double offset butterfly valve, equipped with either a spring return or double-acting ACTREG pneumatic actuator, features a CF8M body and disc. It is a wafer type.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 20 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 630 (17-4 PH) |
| Adjustable limit screws | Yes |
| Lockable | No |
| ATEX compatible | Yes |
| DN | DN50 - 2'' |
| Face to Face (mm) | 62.0 |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Position | Normally closed |
| PS (bar) | 20 |
| Connections | Flanged #150 PN20 |
| Seats | PTFE-Graphite |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Double offset |
| Wafer/lug | Wafer |
| Warranty period | 2 years |
| CE | Risk category III |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Double offset DN50 - 2'' Double acting | 260930015101 | S1001818 |
€710.74
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Double offset DN65 - 2''1/2 Double acting | 260931015101 | S1001819 |
€723.03
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Double offset DN65 - 2''1/2 Spring return | 260931016102 | S1001820 |
€775.36
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Double offset DN80 - 3'' Double acting | 260932015102 | S1001821 |
€897.80
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Double offset DN80 - 3'' Spring return | 260932016103 | S1001822 |
€949.63
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Double offset DN100 - 4'' Double acting | 260933015102 | S1001823 |
€1,309.03
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Double offset DN100 - 4'' Spring return | 260933016104 | S1001824 |
€1,408.74
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Double offset DN125 - 5'' Double acting | 260934015104 | S1001825 |
€1,315.39
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Double offset DN125 - 5'' Spring return | 260934016105 | S1001826 |
€1,432.09
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Double offset DN150 - 6'' Double acting | 260935015105 | S1001827 |
€1,876.80
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Double offset DN150 - 6'' Spring return | 260935016106 | S1001828 |
€2,019.60
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Double offset DN200 - 8'' Double acting | 260936015105 | S1001829 |
€2,623.36
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Double offset DN200 - 8'' Spring return | 260936016106 | S1001830 |
€2,768.69
(excl. btw)
|
add to cart |
